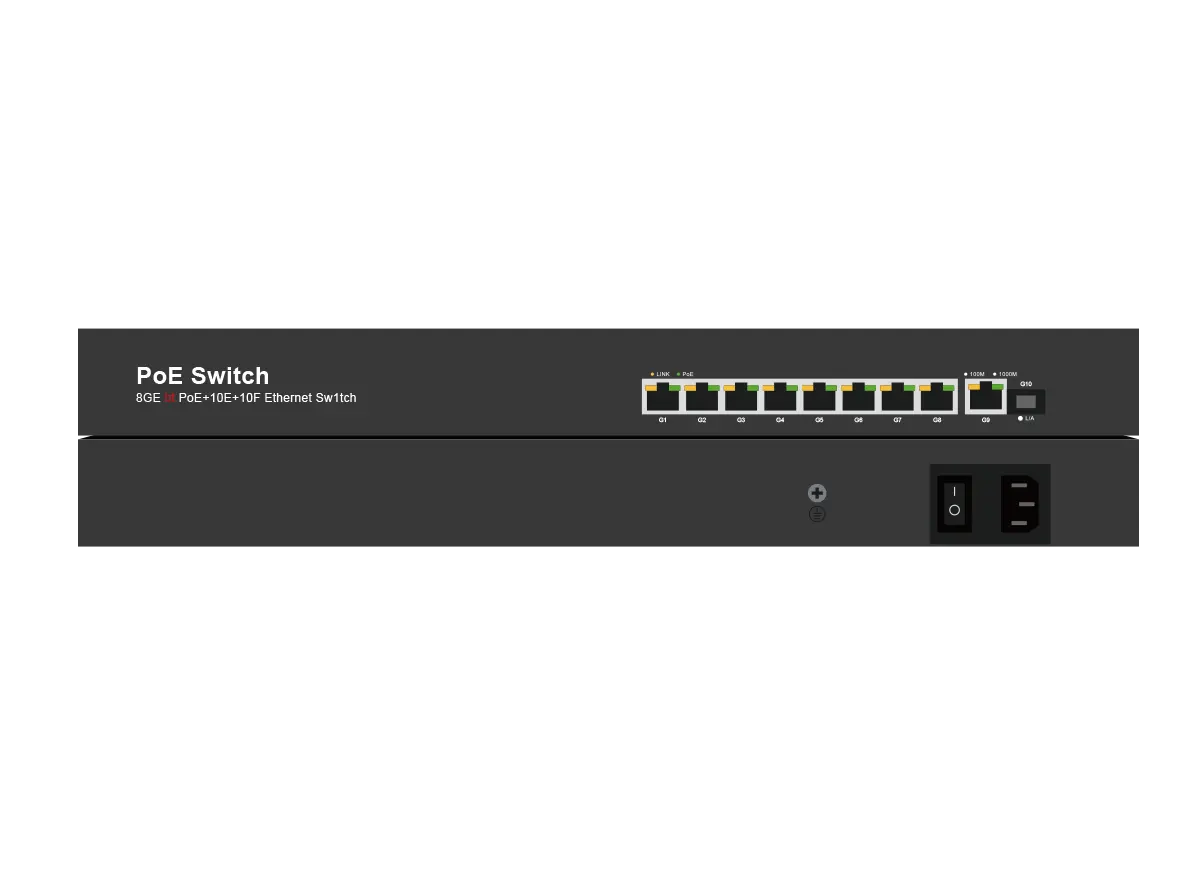

PSW8-BT
8 x 10/100/1000Base-T PoE ports (Data/Power);
1 x 10/100/1000Base-T uplink RJ45 port (Data);
1 x 1000Base-X SFP slot (Data);
Ports 1-8: Auto-detect 10/100/1000Base-T(X), full/half-duplex, MDI/MDI-X adaptive;
Backplane Bandwidth: 20Gbps (non-blocking);
Packet Forwarding Rate @64byte: 14.88Mpps;
MAC Address Table: 8K;
Power Indicator: PWR (green);
Data Indicator: Link (yellow);
PoE Indicator: PoE (green);
Uplink Speed Indicator: SPEED (green);
Ports 1-8 support IEEE802.3bt, backward compatible with IEEE802.3af/at;
Power Pinout: Default 1/2,4/5(+) & 3/6,7/8(-), 8-core power delivery;
Maximum PoE Output Per Port: 95W;
Standard: IEEE802.3af/at/bt;
When all 8 ports are used, the maximum average power per port is 71W;
Total Power/Input Voltage: 600W, AC100-240V;
Built-in Power Supply: Switch mode, AC100-240V 50-60Hz 4.1A;
Operating Temperature/Humidity: -20 to +55°C; 5%-90% RH non-condensing;
Storage Temperature/Humidity: -40 to +80°C; 5%-95% RH non-condensing;
Dimensions (L x W x H): 440 x 181 x 44.5mm;
Net Weight/Gross Weight: <2.5kg / <3.0kg;
Installation Method: Desktop or 1U/19-inch rack-mounted;

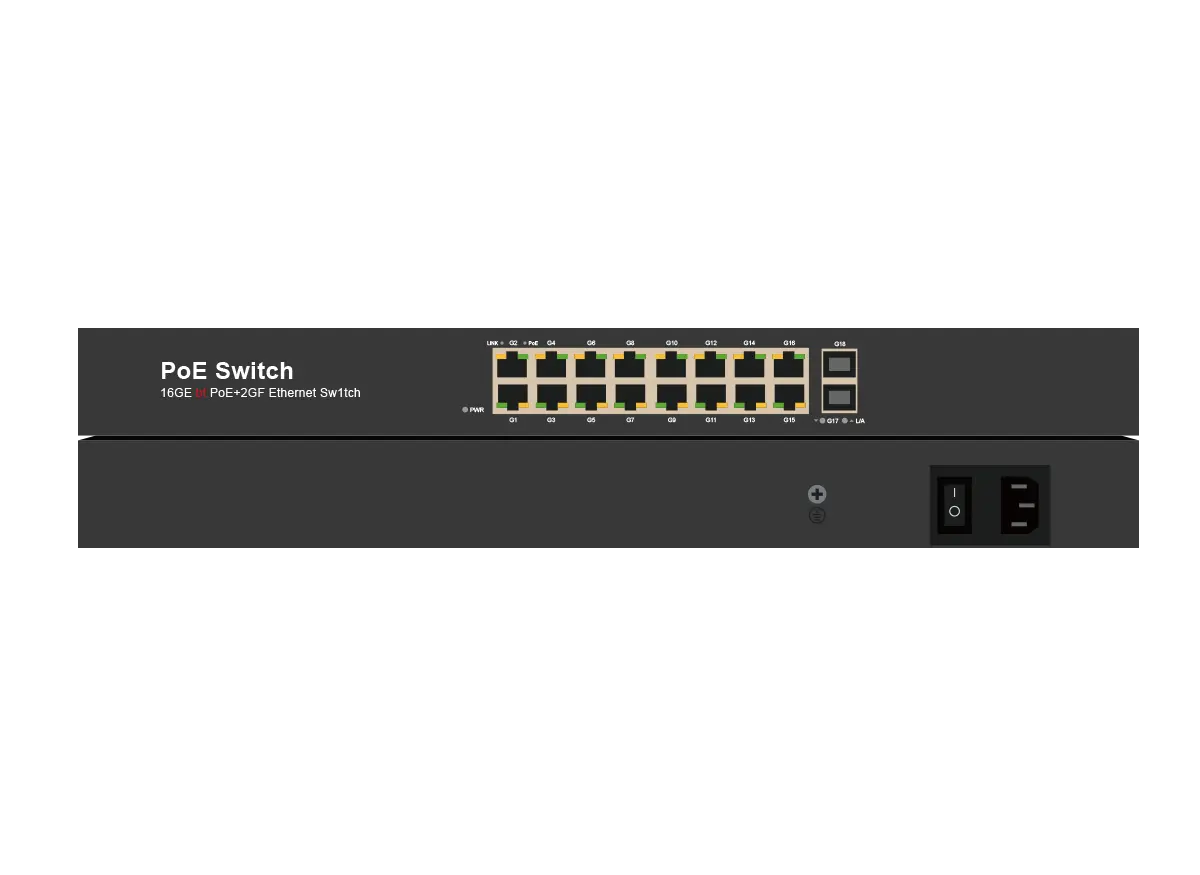

PSW16-BT
16 x 10/100/1000Base-T PoE ports (Data/Power);
2 x 1000Base-X SFP uplink slots (Data);
Ports 1-16: Auto-detect 10/100/1000Base-T(X), full/half-duplex, MDI/MDI-X adaptive;
Backplane Bandwidth: 52Gbps (non-blocking);
Packet Forwarding Rate @64byte: 26.78Mpps;
MAC Address Table: 8K;
Power Indicator: PWR (green);
Data Indicator: Link (yellow);
PoE Indicator: PoE (green);
Uplink Speed Indicator: SPEED (green);
Ports 1-8 support IEEE802.3bt, backward compatible with IEEE802.3af/at;
Power Pinout: Default 1/2,4/5(+) & 3/6,7/8(-), 8-core power delivery;
Maximum PoE Output Per Port: 95W;
Standard: IEEE802.3af/at/bt;
When all 8 ports are used, the maximum average power per port is 71W;
Total Power/Input Voltage: 1200W, AC100-240V;
Built-in Power Supply: Dual switch mode, AC100-240V 50-60Hz 6.6A x 2;
Operating Temperature/Humidity: -20 to +55°C; 5%-90% RH non-condensing;
Storage Temperature/Humidity: -40 to +80°C; 5%-95% RH non-condensing;
Dimensions (L x W x H): 440 x 290 x 44.5mm;
Net Weight/Gross Weight: <5.0kg / <5.8kg;
Installation Method: Desktop or 1U/19-inch rack-mounted;
Full-Gigabit Access with Uplink Optical Ports;
Smooth and Efficient Transmission;
Intelligent PoE Power Supply;
High PoE Output and Compatibility;
Priority Mechanism for PoE Ports;
Reliable and Easy-to-Operate Design;
