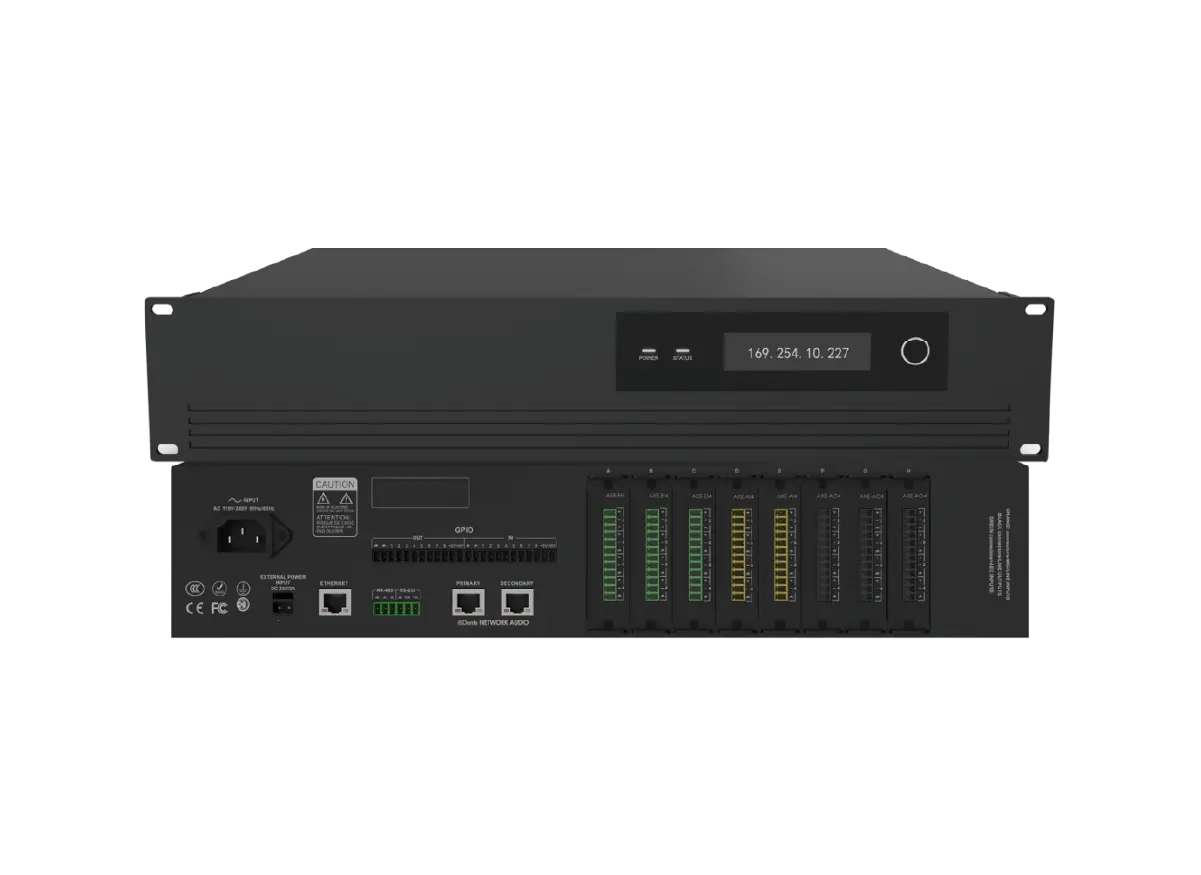

Open architecture with editable processing modules;
Fully plug-in type;
Maximum 96 channels independent AEC;
256 channels Dante (128x128);
Dual USB sound card.
128 × 128
6 audio/IO card slots.
64G.
TIC-4: 4-channel microphone/line input card.
TOC-4: 4-channel line output card.
TEC-4: 4-channel AEC (echo cancellation) microphone/line input card.
TUC-2: 2 × 2 USB sound card.
> 118 dB.
20 Hz to 20 kHz.
5.5 kΩ.
< -112 dB.
≤ 0.002%.
> 91 dBu.
+ 22 dBu.
Touch information control buttons.
Power light, Status light.
3.12-inch flip display screen.
6-Pin 3.81mm Phoenix block.
3.81mm Phoenix block.
RJ45 1000 Mbps.
RJ45 1000 Mbps.
PC software to connect the device or control communication.
IEC connector.
24 VDC 4A 2-pin 5.81mm Phoenix block.
220 VAC - 240 VAC, 50 Hz.
Maximum 4A - 100A (the actual current depends on the specific configuration situation, such as the connection situation of the I/O card slot, the configuration of the media storage, the configuration of the DSP and the network configuration situation).
0 to 45 °C.
85% relative maximum humidity.
CCC CE RoHS FCC.
483 × 88 × 364 mm.
618 × 153 × 473 mm.
8.5 KG.
64 × 64.
6 audio/IO card slots.
64G.
TIC-4: 4-channel microphone/line input card.
TOC-4: 4-channel line output card.
TEC-4: 4-channel AEC (echo cancellation) microphone/line input card.
TUC-2: 2 × 2 USB sound card.
> 118 dB.
20 Hz to 20 kHz.
5.5 kΩ.
< -112 dB.
≤ 0.002%.
> 91 dBu.
+ 22 dBu.
Touch information control buttons.
Power light, Status light.
3.12-inch flip display screen.
6-Pin 3.81mm Phoenix block.
3.81mm Phoenix block.
RJ45 1000 Mbps.
RJ45 1000 Mbps.
PC software to connect the device or control communication.
IEC connector.
24 VDC 4A 2-pin 5.81mm Phoenix block.
220 VAC - 240 VAC, 50 Hz.
Maximum 4A - 100A (the actual current depends on the specific configuration situation, such as the connection situation of the I/O card slot, the configuration of the media storage, the configuration of the DSP and the network configuration situation).
0 to 45 °C.
85% relative maximum humidity.
CCC CE RoHS FCC.
483 × 88 × 364 mm.
618 × 153 × 473 mm.
8.5 KG.
32 × 32.
6 audio/IO card slots.
64G.
TIC-4: 4-channel microphone/line input card.
TOC-4: 4-channel line output card.
TEC-4: 4-channel AEC (echo cancellation) microphone/line input card.
TUC-2: 2 × 2 USB sound card.
> 118 dB.
20 Hz to 20 kHz.
5.5 kΩ.
< -112 dB.
≤ 0.002%.
> 91 dBu.
+ 22 dBu.
Touch information control buttons.
Power light, Status light.
3.12-inch flip display screen.
6-Pin 3.81mm Phoenix block.
3.81mm Phoenix block.
RJ45 1000 Mbps.
RJ45 1000 Mbps.
PC software to connect the device or control communication.
IEC connector.
24 VDC 4A 2-pin 5.81mm Phoenix block.
220 VAC - 240 VAC, 50 Hz.
Maximum 4A - 100A (the actual current depends on the specific configuration situation, such as the connection situation of the I/O card slot, the configuration of the media storage, the configuration of the DSP and the network configuration situation).
0 to 45 °C.
85% relative maximum humidity.
CCC CE RoHS FCC.
483 × 88 × 364 mm.
618 × 153 × 473 mm.
8.5 KG.
128x128, support stream number 128x128
12 microphones (with phantom power supply)/line input, 8 line outputs, 4 customized as input or output channels, meeting the maximum of 16 inputs, 8 outputs or 12 12-channel input USB: dual USB interface, channel 4x4
16 channels of assignable and routable AEC processor modules, supporting echo processing tail length 512ms (4 channels)
>118dB
20Hz~20kHZ
<-112dB
≤0.002%
>91dBu
+22dBu
Controls and indicators
touch information control button
Power light
Status light
2.08-inch flip display
Rear panel connection port
6Pin 3.81mm Phoenix mount
16Pin 3.81mm Phoenix mount
RJ451000Mbps
RJ451000Mbps
PC software to connect equipment or control communication
IEC connector 220VAC-240VAC, 50Hz
24V DC2pin 5.81mm Phoenix socket
Network interface, digital-to-analog/analog-to-digital conversion
32x32
8 audio I/O card slots
microphone/line input card
line output card
4-channel AEC (acoustic echo cancellation) microphone/line input card
2x2USB sound card

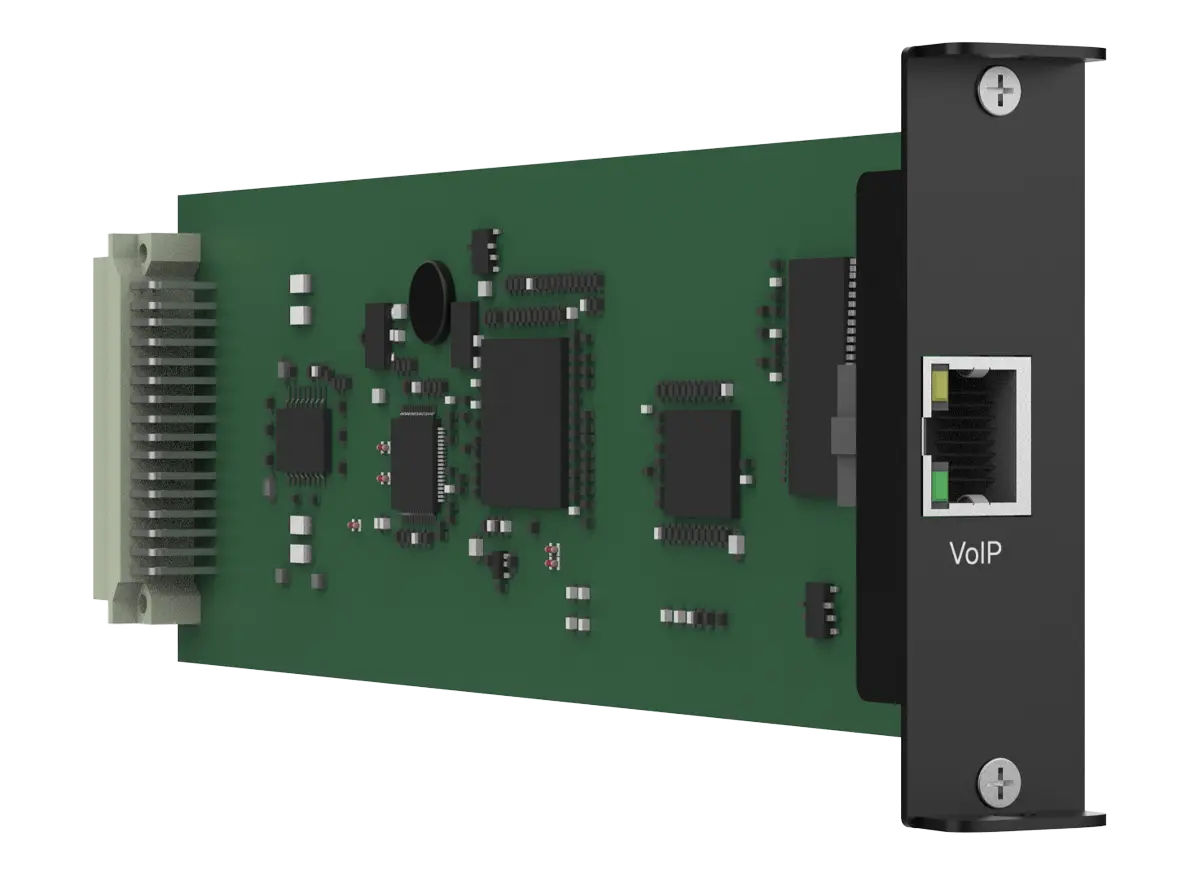

4-channel IP voice card
Control and indicator lights
touch information control button
Power light
Statusfire
Rear panel connection port
6Pin3.81mm Phoenix seat
16Pin 3.81mm Phoenix socket
RJ451000Mbps
RJ451000Mbps
PC software to connect equipment or control communication
IEC connector
24VDC 2A 2pin5.81mm Phoenix socket
220VAC-240VAC, 50HZ
4A maximum @100VAC (the actual current depends on the specific configuration, such as the I/0 card slot connection and network configuration)
0~45℃
600 (estimated value under load)
85% relative maximum humidity
CCC CE ROSH FCC
483x88x364mm
618x153x473mm
10KG
Network interface, digital-to-analog/analog-to-digital conversion
8 channels microphone (with phantom power supply)/line input (4 channels with AEC function), 8 channels line output
2x2
8x8
Rj45 1000Mbps
RJ45 1000Mbps
PC software to connect equipment or control communication, control port: 16 GPIO channels, 1 universal serial port RS232 and 1 universal serial port RS485 sampling rate: 48kHz
>118dB
20Hz~20kHz
<-112dB
≤0.002%
>91dBu
+22dBu

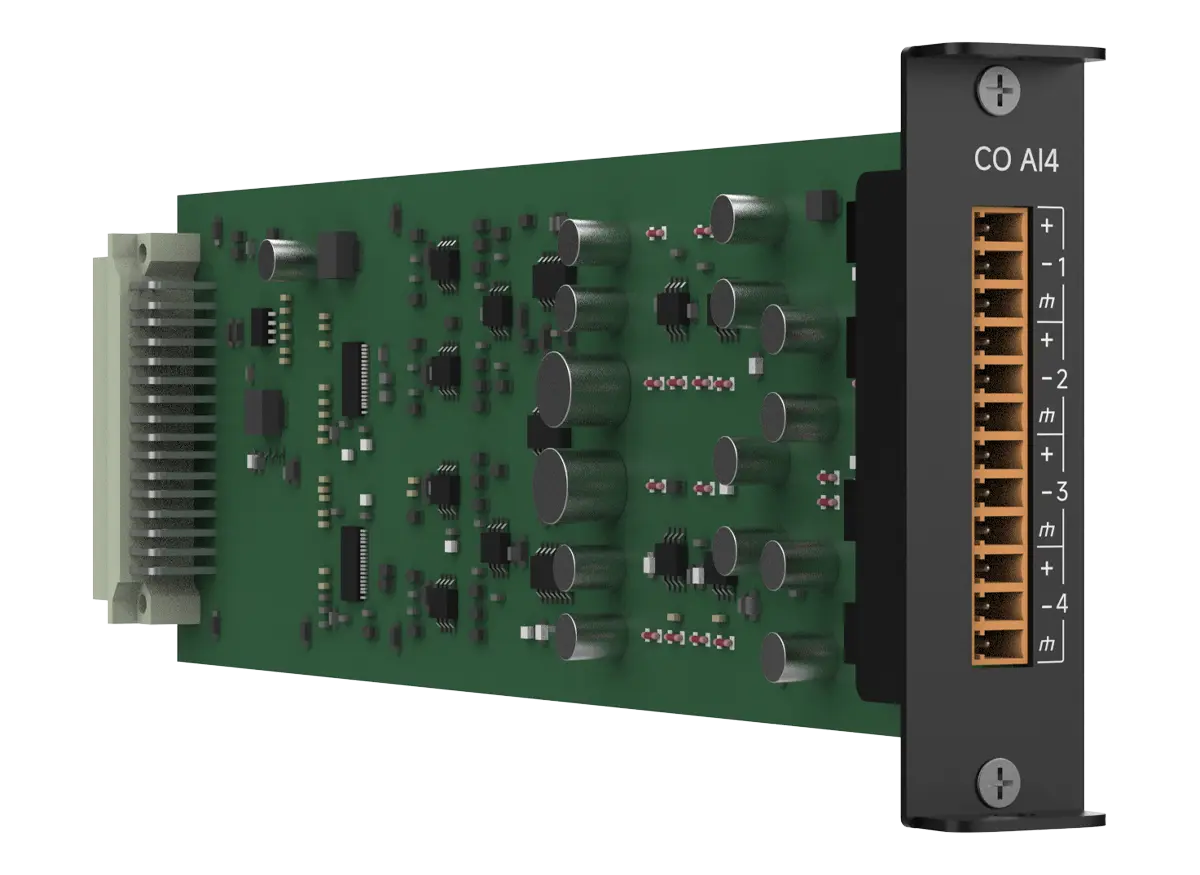

4-channel microphone/line level analog audio signal input and provides 48V phantom power supply;
±0.02dB
118dB;
+22dBu/-10dBv optional
0-54dB
5.5KΩ
≤0.001%
12pin 3.56mm European style separate terminal
4-channel microphone/line level analog audio signal input and provides 48V phantom power supply;
4 channels of 300ms AEC echo cancellation processing, which does not occupy host processing resources;
±0.02dB
118dB;
+22dBu/-10dBv optional
0-54dB
5.5KΩ
≤0.001%
12pin 3.56mm European style separate terminal

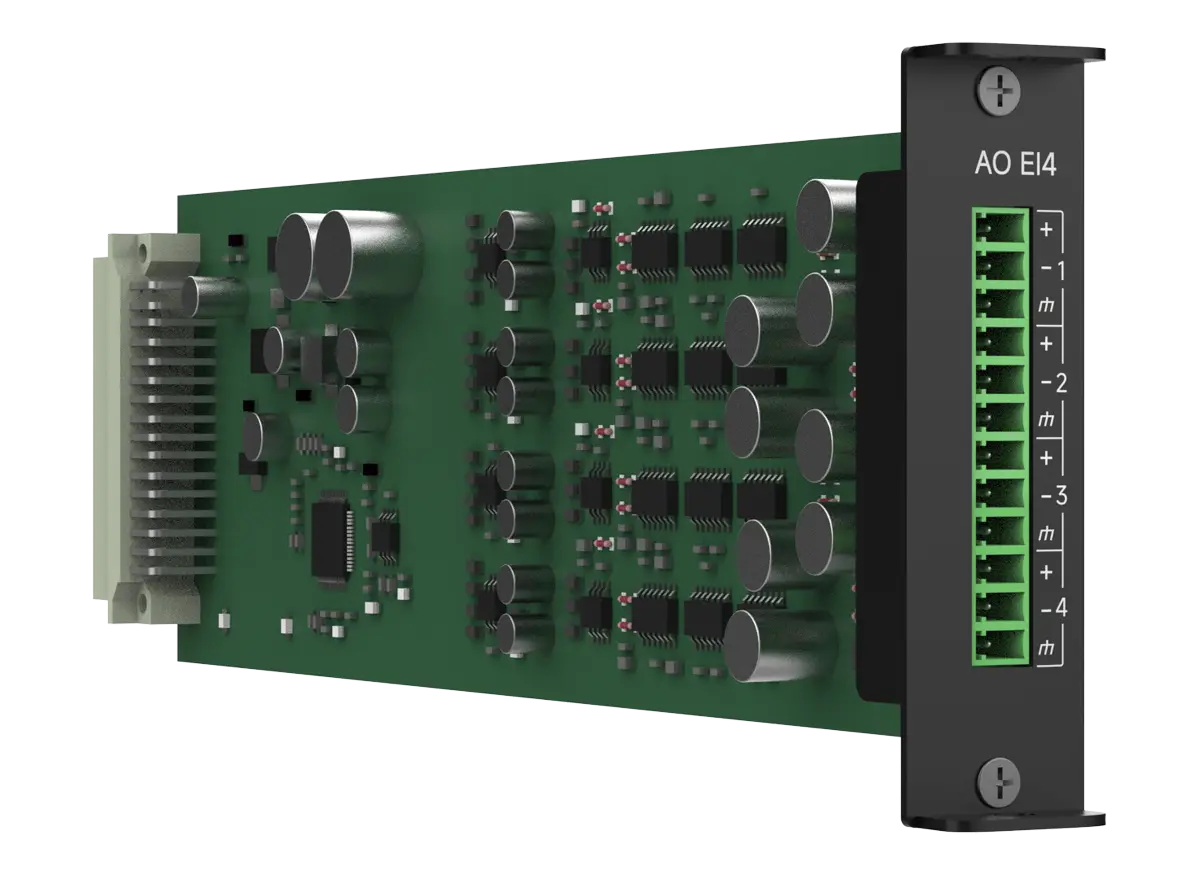

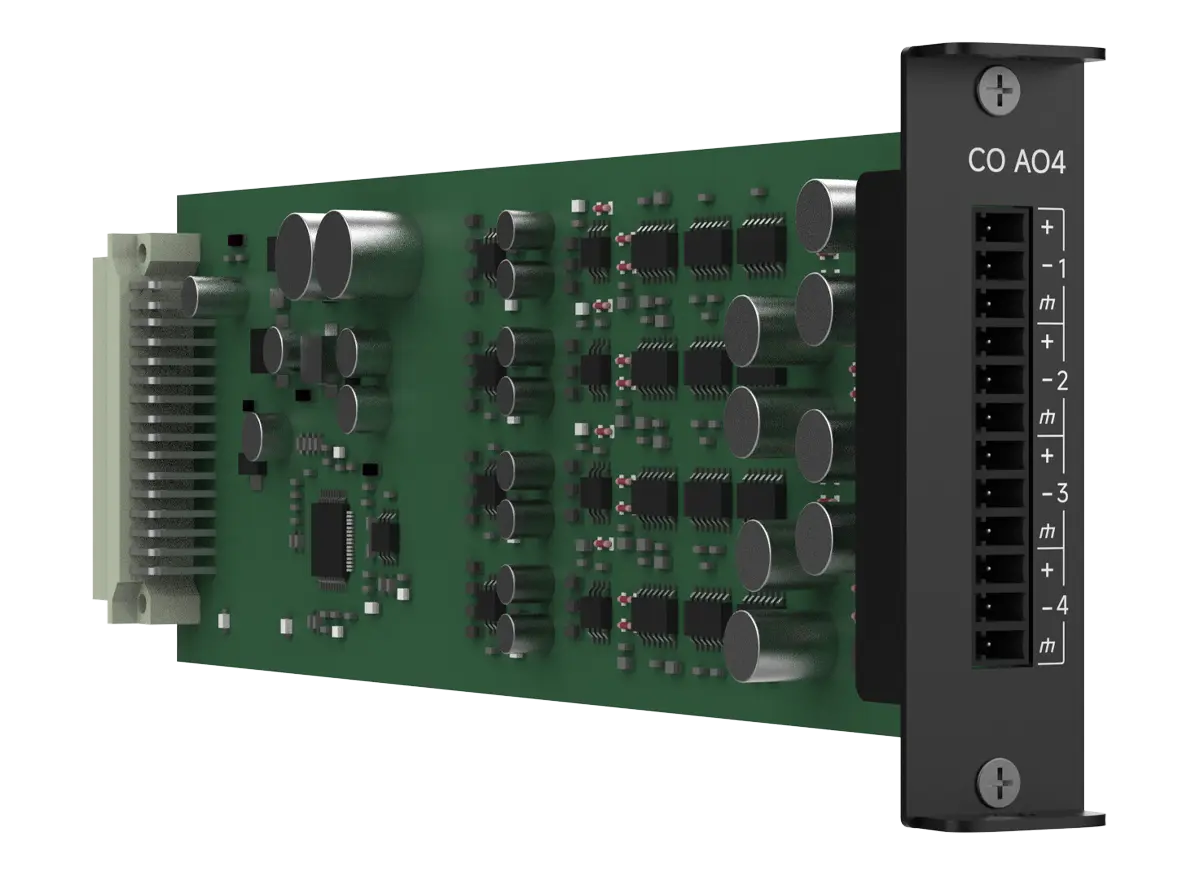

4-channel balanced line level output card;
±0.02dB
118dB;
-94dBu
+22dBu/-10dBv optional
102Ω
≤0.001%
-112dB
12pin 3.56mm European style separate terminal
48kHz,
24-bit,
2x2 line I/O mode uses USB Type-C interface with support for hot-plugging.
Equipped with a quick installation interface.
Control and configuration can be done through software.
Open architecture platform
Ininito series of open architecture platform can be flexible drag and drop the required processing modules for the design of the signal architecture, the signal node and flow mode is completely design editors to decide, greatly improving the signal routing flexibility.
Maximum 96 channels independent AEC
Ininito series supports a maximum of 96 independent channels AEC algorithm processing, eliminating the tail for a long time can be as high as 512ms, to meet the large-scale system can be used as the core echo cancellation algorithm of the important processing equipment.
plug-in mode
Ininito series using multiple card slot configuration card way to show the number of local interfaces, the same compared to the fixed interface to more flexible and reliable, the designer can be based on the actual needs of different types of card configuration, so as to achieve flexible use of demand.
256 way Dante
Ininito series Dante version supports a maximum of 256-way Dante (128x128) network audio transmission, in the medium and large sound reinforcement system plays a key role in the network transmission and core processing.
web-end customized user interface control
Users can design a customized control interface according to the needs, uploaded to the device, the end user only needs to access the IP address of the device through a browser in the LAN, you can show the design of the control interface content, without downloading any application for control, whether PC or wireless mobile terminal.
Master-slave mechanism
Ininito series also support the configuration of the master and backup system, can detect each other through the protocol device heartbeat packet for real-time detection, once the main device is found to be faulty, the slave device can be immediately switched seamlessly to achieve the standby system is enabled in the important large-scale sound reinforcement system is also an essential design point.
Maximum support for 16-channel multi-track playback and recording functions
Ininito series supports a maximum of 16-channel multi-track playback and audio recording function, can be realized in special demand occasions multi-track recording and playback, such as multi-area playback of different music scenes, this feature allows the designer to be more flexible and wider application scenarios.
