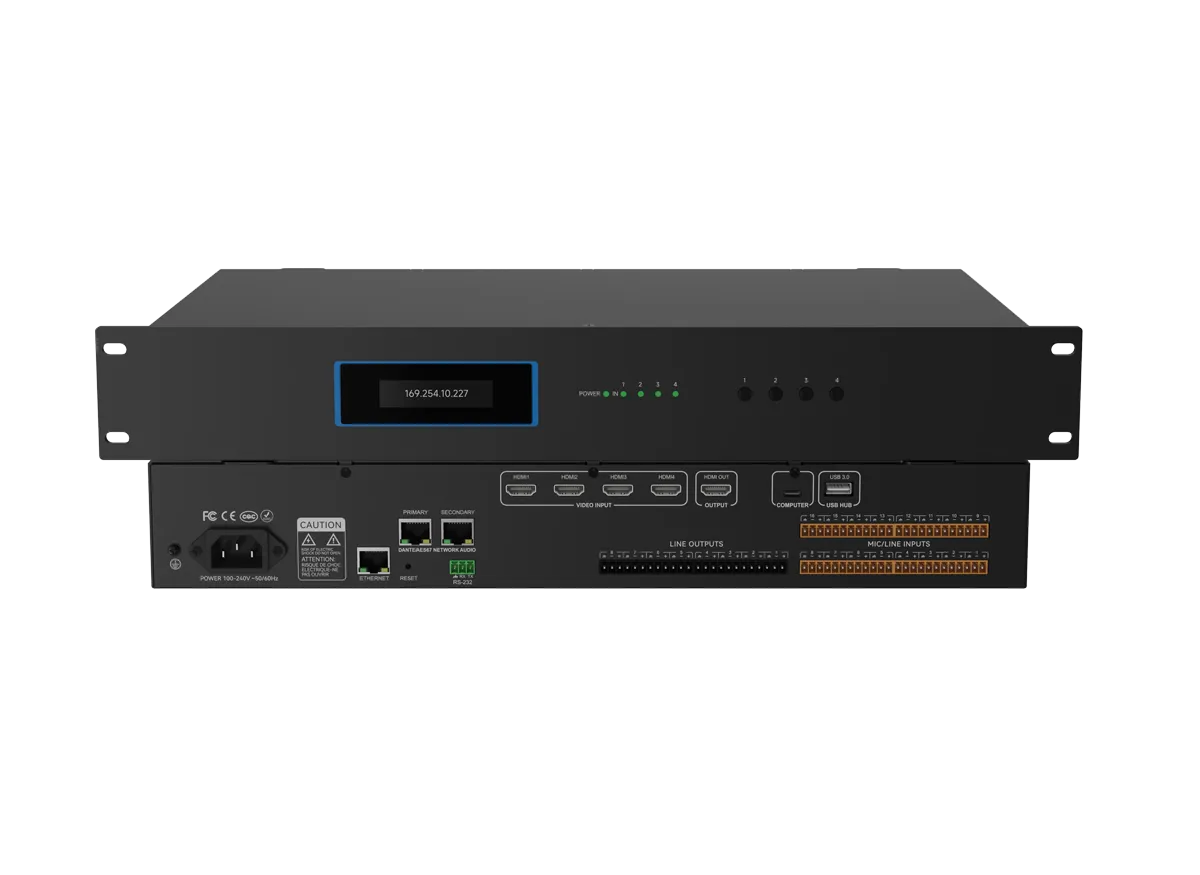

AV Processing Center

Name: AV Processing Center
Brand: Shenzhen Cretone Audio Technology Co., Ltd.

We provide a comprehensive solution integrating audio processors and HDMI matrices, offering advanced audio and video processing and management capabilities. The audio processor supports 8 analog inputs and 8 analog outputs, ensuring high-quality audio transmission. Our solution includes 4x1 HDMI + 1 Type-C seamless video switching, intelligent synchronization, and compatibility with platforms like Tencent Meeting and Zoom for enhanced communication and meeting experiences.

Specification

Highlights

Specification of AV Processing Center

MDP108

MDP108D

MDP1016

MDP1016D

PDF Download

MDP108 PDF

Processor

ADI SHARC 21489 @ 450 MHz SIMD

DSP Processing Power

400 MIPS, 1.6 GFLOPS

Analog Input/Output Channels

8x8

Frequency Response

(20–20kHz) ±0.3dB

Phantom Power

+48V/10mA max

Sampling Rate

48 kHz, ±100 ppm

Input Dynamic Range

113 dB

Output Dynamic Range

113 dB

THD+N

< -95 dB @ 17 dBu

HDMI Input Channels

HDMI Output Channels

Type-C Channel

Bidirectional 1x1 audio + video capture

Video Resolution

4K 60Hz 4:4:4

Switching Mode

Seamless switching

USB 3.0 HUB

Operating Temperature

0–40°C

Power Supply

110V–240V 50/60Hz

Dimensions (W x D x H)

482 x 260 x 45 mm

Shipping Weight

4 kg

PDF Download

MDP108D PDF

Processor

ADI SHARC 21489 @ 450 MHz SIMD

DSP Processing Power

400 MIPS, 1.6 GFLOPS

Analog Input/Output Channels

8x8

Dante Input/Output Channels

16x16

Frequency Response

(20–20kHz) ±0.3dB

Phantom Power

+48V/10mA max

Sampling Rate

48 kHz, ±100 ppm

Input Dynamic Range

113 dB

Output Dynamic Range

113 dB

THD+N

< -95 dB @ 17 dBu

HDMI Input Channels

HDMI Output Channels

Type-C Channel

Bidirectional 1x1 audio + video capture

Video Resolution

4K 60Hz 4:4:4

Switching Mode

Seamless switching

USB 3.0 HUB

Operating Temperature

0–40°C

Power Supply

110V–240V 50/60Hz

Dimensions (W x D x H)

482 x 260 x 45 mm

Shipping Weight

4 kg

PDF Download

MDP1016 PDF

Processor

ADI SHARC 21489 @ 450 MHz SIMD

DSP Processing Capability

400 MIPS, 1.6 GFLOPS

Input Gain

0/3/6/9/12/15/18/21/24/27/30/ 33/36/39/42/45/48 dB

Frequency Response

20Hz~20kHz (+0.04\-0.3dB)

Maximum Level

+18dBu

Sampling Rate

48 kHz, 24Bit

THD+N

<0.001% (1kHz, +4dBu A-weighted)

Device Noise

≤-95dB (A-weighted)

Input Common Mode Rejection Ratio

≥81dB @ 1kHz, 0dBu

Output Crosstalk

＜-92dB @ 1kHz, 0 Gain

Input Dynamic Range

113dB

Output Dynamic Range

113dB

HDMI Input

USB 3.0 Input

Type-C Output

HDMI 1 Output

Video Resolution

4K 60Hz 4:4:4

Switching Mode

Seamlessly Switch

Operating Voltage

110-240VAC

Dimensions (W x D x H)

482 x 261 x 66mm

Shipping Weight (Net/Gross Weight)

3.75kg/5.48kg

Analog Input/Output Channels

16x8

Dante Input/Output Channels

16x16

Processor

ADI SHARC 21489 @ 450 MHz SIMD

DSP Processing Capability

400 MIPS, 1.6 GFLOPS

Input Gain

0/3/6/9/12/15/18/21/24/27/30/ 33/36/39/42/45/48 dB

Frequency Response

20Hz~20kHz (+0.04\-0.3dB)

Maximum Level

+18dBu

Sampling Rate

48 kHz, 24Bit

THD+N

<0.001% (1kHz, +4dBu A-weighted)

Device Noise

≤-95dB (A-weighted)

Input Common Mode Rejection Ratio

≥81dB @ 1kHz, 0dBu

Output Crosstalk

＜-92dB @ 1kHz, 0 Gain

Input Dynamic Range

113dB

Output Dynamic Range

113dB

HDMI Input

USB 3.0 Input

Type-C Output

HDMI 1 Output

Video Resolution

4K 60Hz 4:4:4

Switching Mode

Seamlessly Switch

Operating Voltage

110-240VAC

Dimensions (W x D x H)

482 x 261 x 66mm

Shipping Weight (Net/Gross Weight)

3.96kg/5.62kg

Highlights of AV Processing Center

MDP104

ATS Auto Threshold SensingAutomatic Mixing Technology;

Microphone full on voice activated camera tracking technology;

Full duplex echo cancellation + noise suppression algorithm;

Support 4K 60Hz 4:4:4;

Support Type-C audio and video capture and USB3.0 audio playback and recording;

Supports Dante digital protocol for high efficiency and low latency digital transmission.

MDP108

9x9 input and output audio mixing and processing;

Both local sound reinforcement and remote conferencing;

Compatible with cloud conferencing platform and hardware remote conferencing platform;

Support Type-C audio and video capture and USB3.0 audio playback and recording;

Supports Dante digital protocol for high efficiency and low latency digital transmission;

4-way HDMI input, 1-way HDMI output, 1-way TypeC video capture.

MDP108D

25x25 input and output audio mixing and processing;

Both local sound reinforcement and remote conferencing;

Compatible with cloud conferencing platform and hardware remote conferencing platform;

Support Type-C audio and video capture and USB3.0 audio playback and recording;

Supports Dante digital protocol for high efficiency and low latency digital transmission;

4-way HDMI input, 1-way HDMI output, 1-way TypeC video capture.
