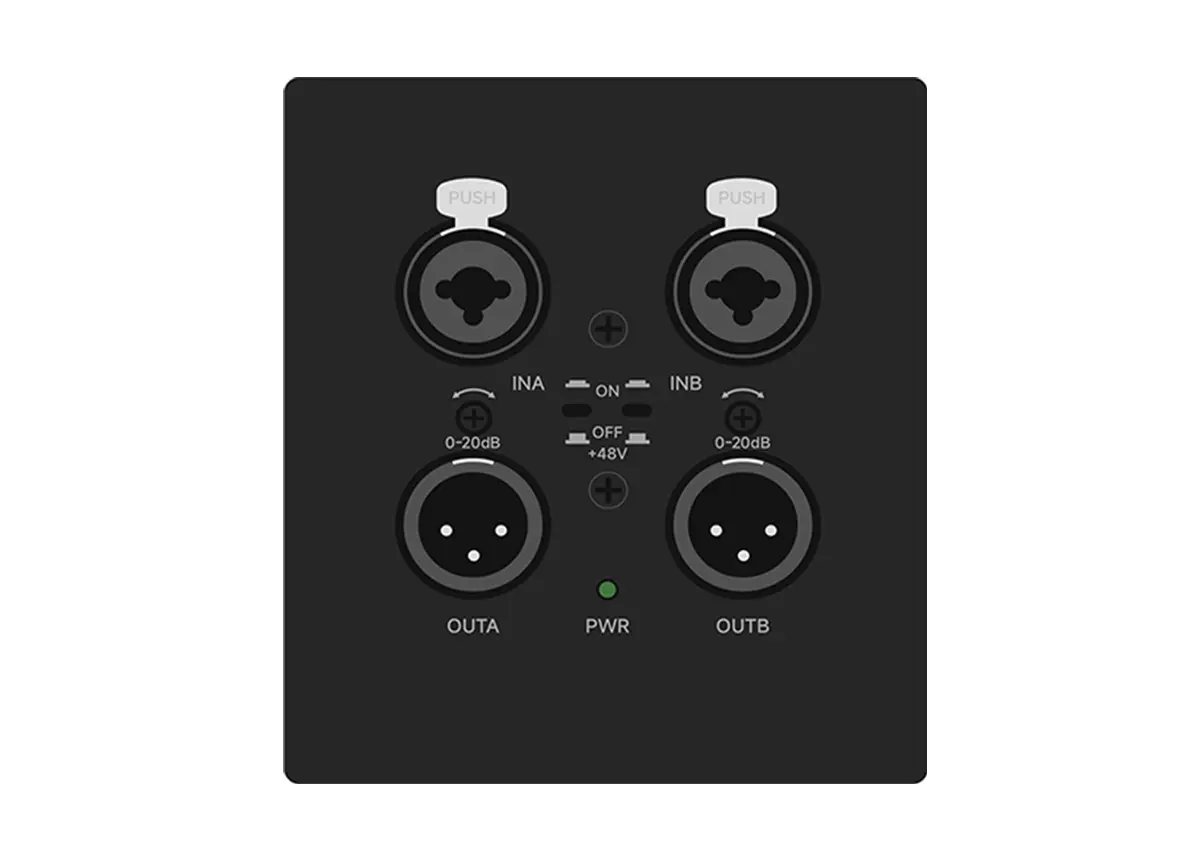

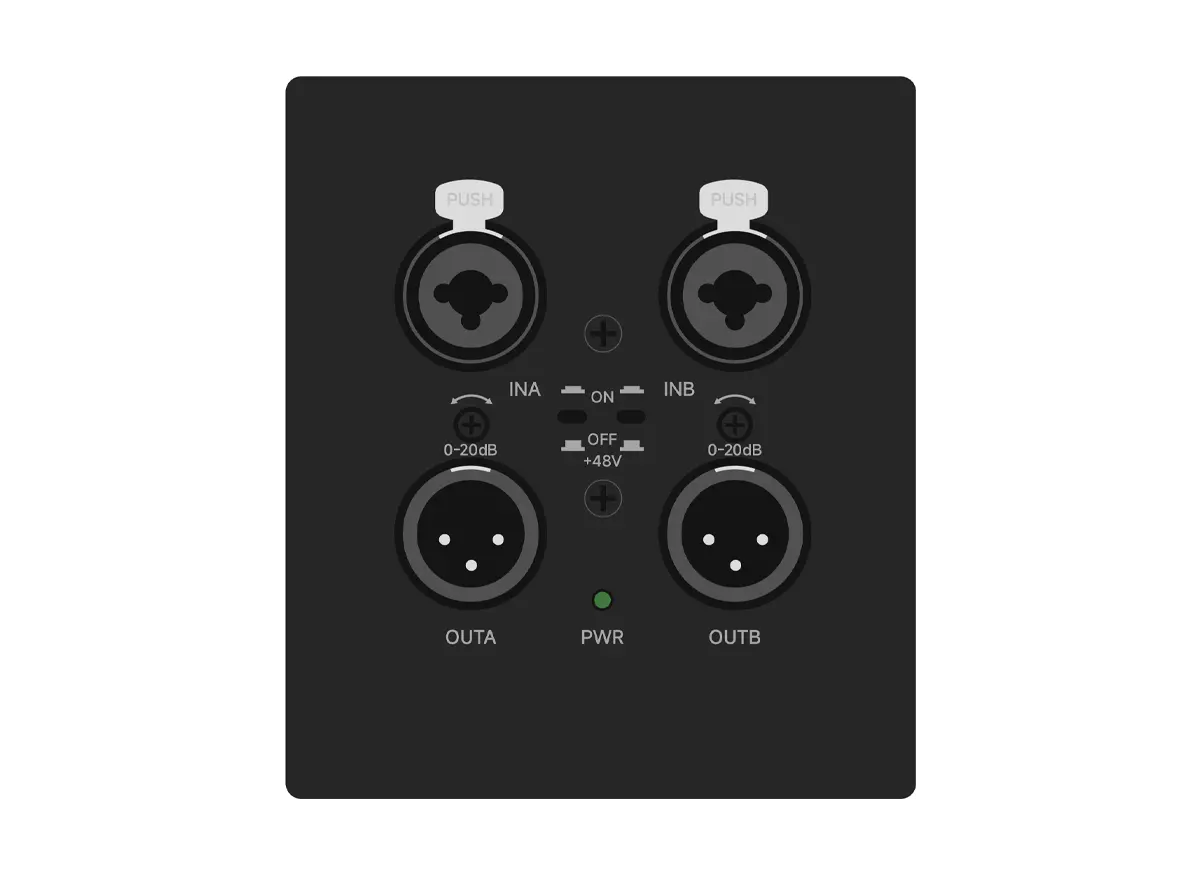

The device offers 2 balanced XLR mic/line inputs and 2 balanced XLR line outputs, supporting PoE based on the 802.3af standard. It includes three input gain levels for line and mic signals, and each channel provides +48V phantom power, making it suitable for powering virtually all types of phantom-powered microphones commonly used in fixed-installation systems.
Ultimo 2 Dante Chipset;
High-Quality Audio;
Low THD+N;
PoE Power Supply;
Excellent Isolation;
Sotware Designable.
2x2
Ultimo 2
20dB
±0.2dB (20~20kHz)
+18dBu, balanced
<0.002% @ 4dBu
-97dBu
20 kΩ
100Ω
100dB @ 1kHz
PoE
W110×H110×D50 mm
English
