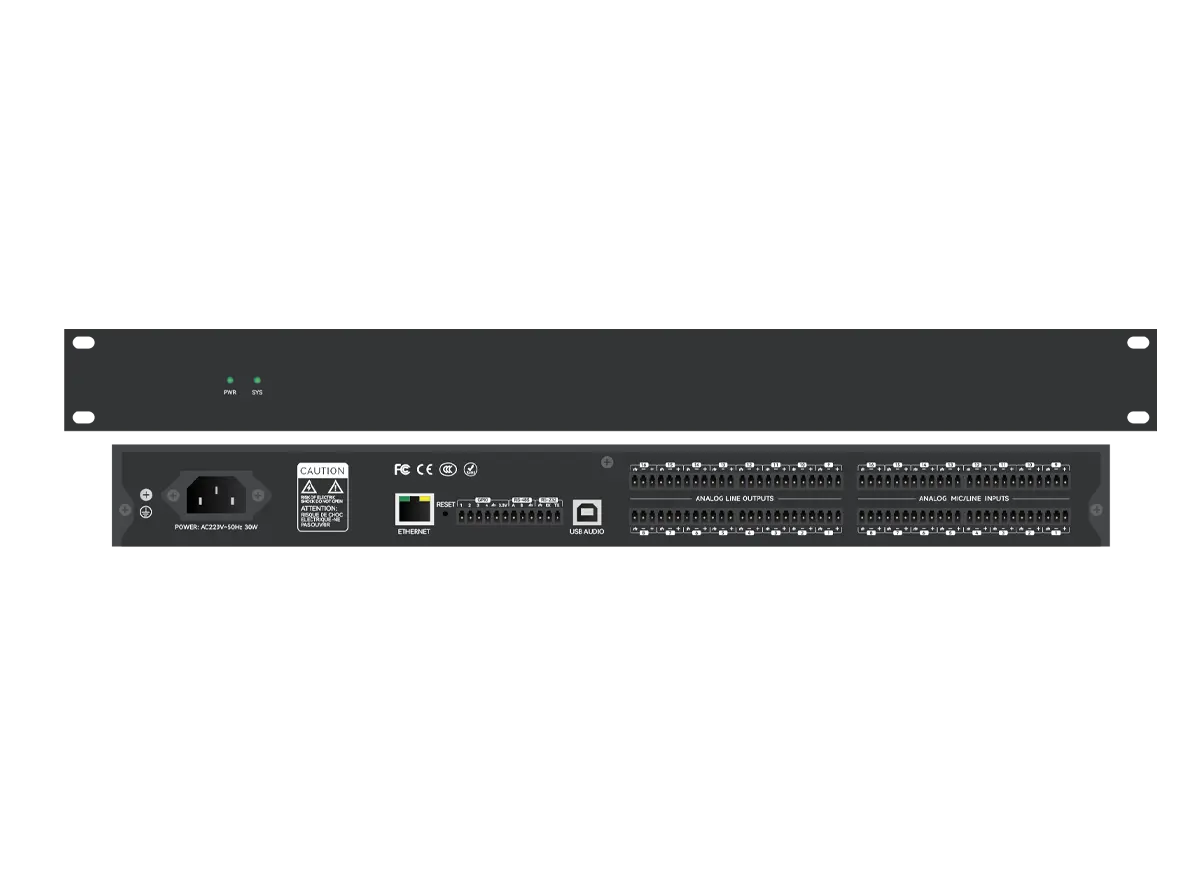

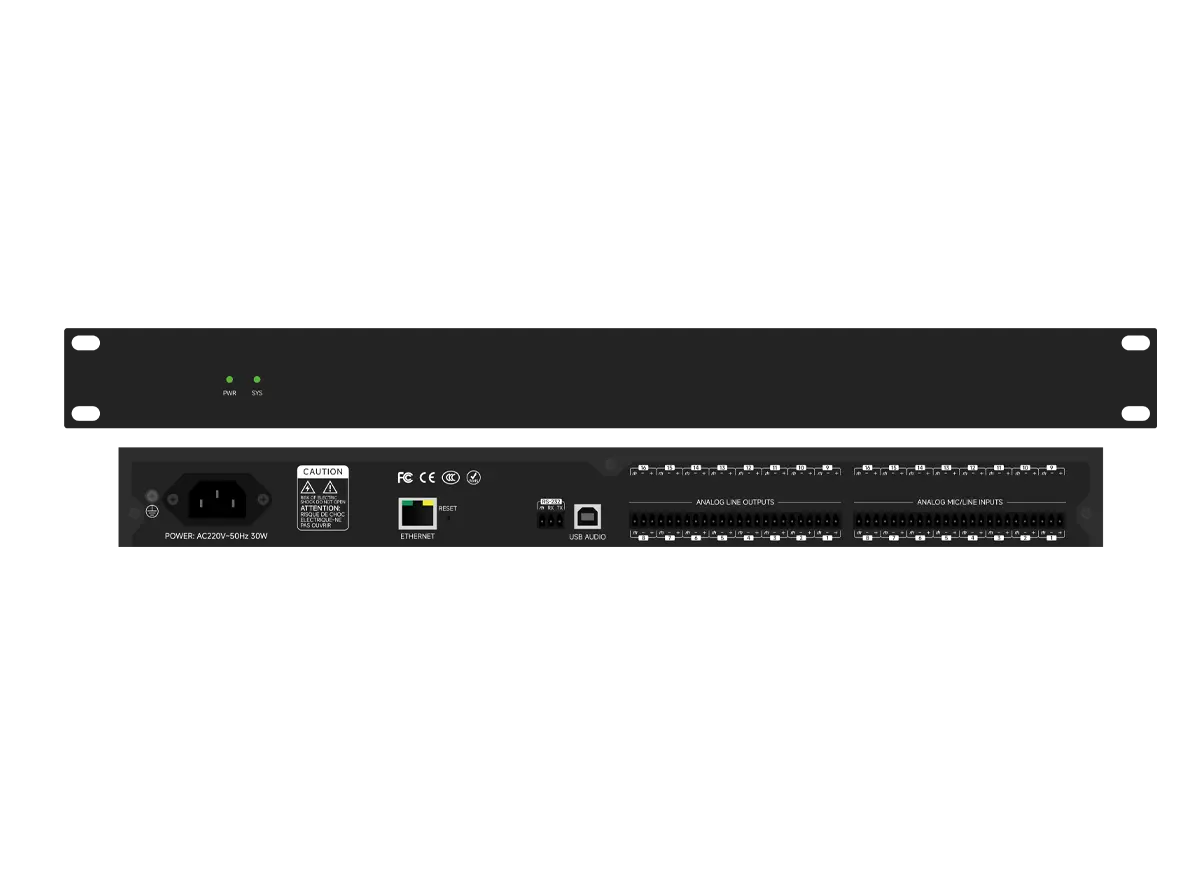

Fixed Architecture DSP Beidou

T-effective of our digital audio processor products, offering AEC/AFC/AGC/AMM/ANS 5A algorithmic processing, as well as built-in USB sound card functionality to support music playback, recording and soft video conferencing. Compatible with all control panels in terms of control, it also offers customized user interface controls, allowing for unrestricted use.

8-band parametric equalizer with 5 filter options (Parametric, Lowshelf, Highshelf, Lowpass, Highpass)
Channel-independent AFC, Transmit Gain Boost: 10dB
Bus AEC with long tail time: 512ms

Specification

Highlights

Specification of Fixed Architecture DSP Beidou

BD44

BD88

BD1608

BD1616

BDPro-88

BDPro-1616

Processor

ADI SHARC 21489

Analog input channels

Analog output channels

Processor

ADI SHARC 21489@450 MHz SIMD;

DSP processing capability

400 MIPS, 1.6 GFLOPS;

Sampling rate

48 kHz, ± 100 ppm;

THD+N

0.002% @+4dBu

Sampling rate/quantization bits

48K/24bit

40bit DSP floating point operation engine

Number of analog input and output channels

4 x 4

Input gain

0/6/12/18/24/30/36/42/48dB

Phantom power

+48V/10mA max

Frequency response (20~20kHz)

±0.5dB

Maximum level

+18dBu

THD+N

0.002% @+4dBu

Input dynamic range

110dB

Output dynamic range

110dB

Channel isolation @1kHz

108dB

Input impedance (balanced connection)

5.4KΩ

Output impedance (balanced connection)

600Ω

System delay

<3ms

Working power supply

AC 220V, 50Hz

Dimensions (width x depth x height)

482 x 200 x 45mm

Shipping weight

3KG

Processor

ADI SHARC 21489

Analog input channels

Analog output channels

Processor

ADI SHARC 21489@450 MHz SIMD;

DSP processing capability

400 MIPS, 1.6 GFLOPS;

Sampling rate

48 kHz, ± 100 ppm;

THD+N

0.002% @+4dBu

Sampling rate/quantization bits

48K/24bit

40bit DSP floating point operation engine

Number of analog input and output channels

8 x 8

Input gain

0/6/12/18/24/30/36/42/48dB

Phantom power

+48V/10mA max

Frequency response (20~20kHz)

±0.5dB

Maximum level

+18dBu

THD+N

0.002% @+4dBu

Input dynamic range

110dB

Output dynamic range

110dB

Channel isolation @1kHz

108dB

Input impedance (balanced connection)

5.4KΩ

Output impedance (balanced connection)

600Ω

System delay

<3ms

Working power supply

AC 220V, 50Hz

Dimensions (width x depth x height)

482 x 200 x 45mm

Shipping weight

3KG

Processor

ADI SHARC 21489

Analog input channels

Analog output channels

Processor

ADI SHARC 21489@450 MHz SIMD;

DSP processing capability

400 MIPS, 1.6 GFLOPS;

Sampling rate

48 kHz, ± 100 ppm;

THD+N

0.002% @+4dBu

Sampling rate/quantization bits

48K/24bit

40bit DSP floating point operation engine

Number of analog input and output channels

16 x 8

Input gain

0/6/12/18/24/30/36/42/48dB

Phantom power

+48V/10mA max

Frequency response (20~20kHz)

±0.5dB

Maximum level

+18dBu

THD+N

0.002% @+4dBu

Input dynamic range

110dB

Output dynamic range

110dB

Channel isolation @1kHz

108dB

Input impedance (balanced connection)

5.4KΩ

Output impedance (balanced connection)

600Ω

System delay

<3ms

Working power supply

AC 220V, 50Hz

Dimensions (width x depth x height)

482 x 200 x 45mm

Shipping weight

4KG

Processor

ADI SHARC 21489

Analog input channels

Analog output channels

Processor

ADI SHARC 21489@450 MHz SIMD;

DSP processing capability

400 MIPS, 1.6 GFLOPS;

Sampling rate

48 kHz, ± 100 ppm;

THD+N

0.002% @+4dBu

Sampling rate/quantization bits

48K/24bit

40bit DSP floating point operation engine

Number of analog input and output channels

16 x 16

Input gain

0/6/12/18/24/30/36/42/48dB

Phantom power

+48V/10mA max

Frequency response (20~20kHz)

±0.5dB

Maximum level

+18dBu

THD+N

0.002% @+4dBu

Input dynamic range

110dB

Output dynamic range

110dB

Channel isolation @1kHz

108dB

Input impedance (balanced connection)

5.4KΩ

Output impedance (balanced connection)

600Ω

System delay

<3ms

Working power supply

AC 220V, 50Hz

Dimensions (width x depth x height)

482 x 200 x 45mm

Shipping weight

4KG

Processor

ADI SHARC 21489

Analog input channels

Analog output channels

Sampling rate/quantization bits

48K/24bit

40bit DSP floating point operation engine

Number of analog input and output channels

8 x 8

Input gain

0/6/12/18/24/30/36/42/48dB

Phantom power

+48V/10mA max

Frequency response (20~20kHz)

±0.5dB

Maximum level

+18dBu

THD+N

<-92dB @17dBu

Input dynamic range

110dB

Output dynamic range

110dB

Channel isolation @1kHz

108dB

Input impedance (balanced connection)

5.4KΩ

Output impedance (balanced connection)

600Ω

System delay

<3ms

Working power supply

AC 220V, 50Hz

Dimensions (width x depth x height)

482 x 200 x 45mm

Shipping weight

3KG

Frequency response (20~20kHz)

±0.5dB

Processor

ADI SHARC 21489

Analog input channels

Analog output channels

Sampling rate/quantization bits

48K/24bit

40bit DSP floating point operation engine

Number of analog input and output channels

16 x 16

Input gain

0/6/12/18/24/30/36/42/48dB

Phantom power

+48V/10mA max

Frequency response (20~20kHz)

±0.5dB

Maximum level

+18dBu

THD+N

<-92dB @17dBu

Input dynamic range

110dB

Output dynamic range

110dB

Channel isolation @1kHz

108dB

Input impedance (balanced connection)

5.4KΩ

Output impedance (balanced connection)

600Ω

System delay

<3ms

Working power supply

AC 220V, 50Hz

Dimensions (width x depth x height)

482 x 200 x 45mm

Shipping weight

4KG

Highlights of Fixed Architecture DSP Beidou

The use of ADI high-performance chip:

BeiDou series all adopt ADI SHARC 21489@450 MHz SIMD processor chip, which can be better for the internal algorithm and DSP work processing.

Bus type AEC function:

Bus AEC algorithm, eliminating the tail for a long time can be as high as 512ms, and echo convergence rate can be done to 60dB/S, echo elimination amplitude of 60dB, to meet the majority of the hall building acoustics is not good and there is a large reflection of the sound case, do the echo elimination of teleconferencing issues.

Built-in USB sound card interface:

Beidou series are built-in USB sound card interface, can be accessed through the interface to the computer, automatic recognition of the sound card, computer audio playback or audio recording. At the same time can also be accessed through the interface to the computer for remote video conferencing audio function options.
