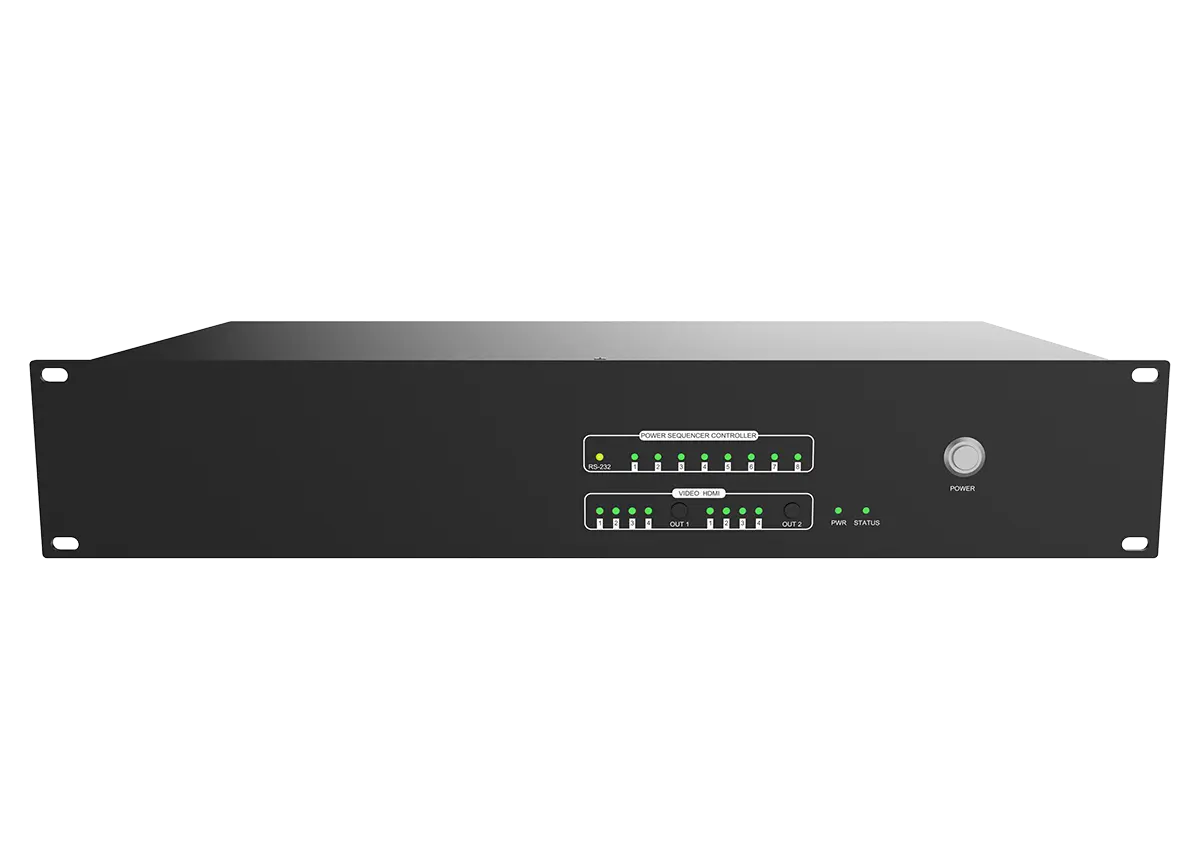

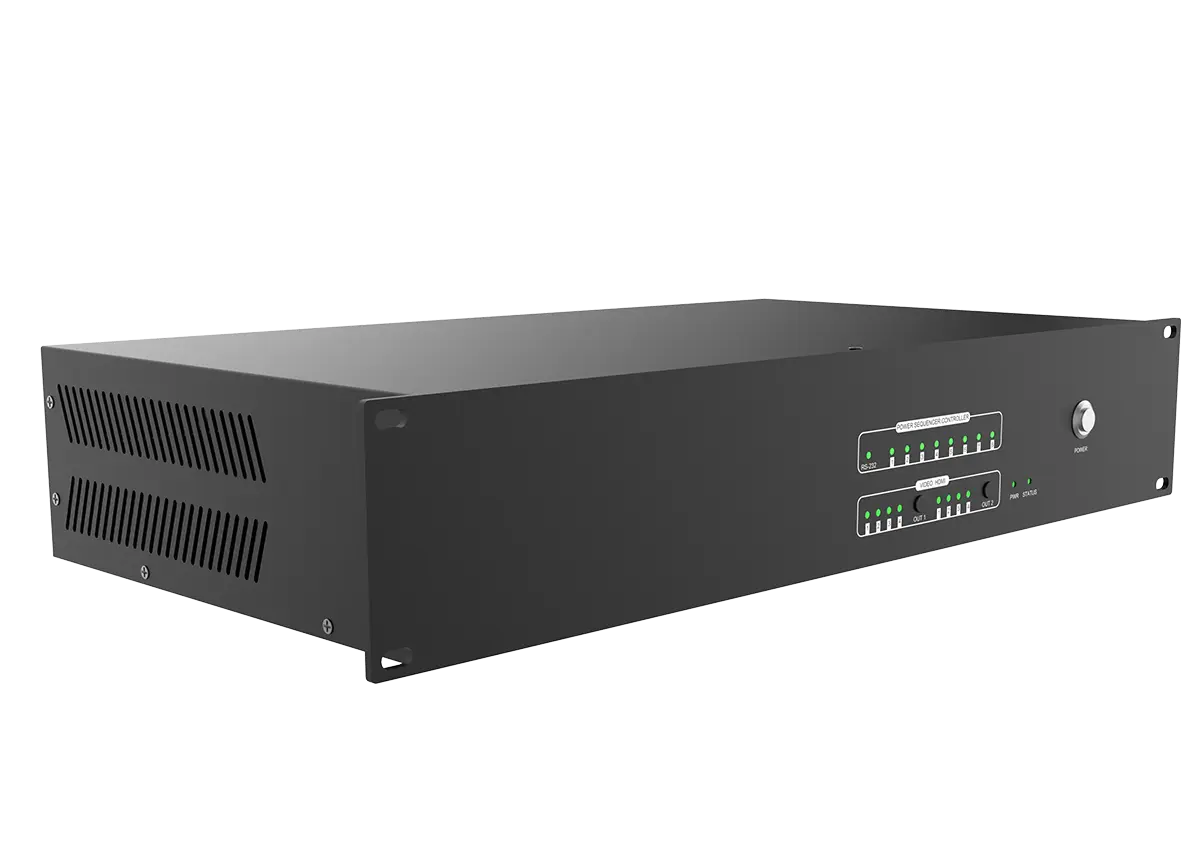

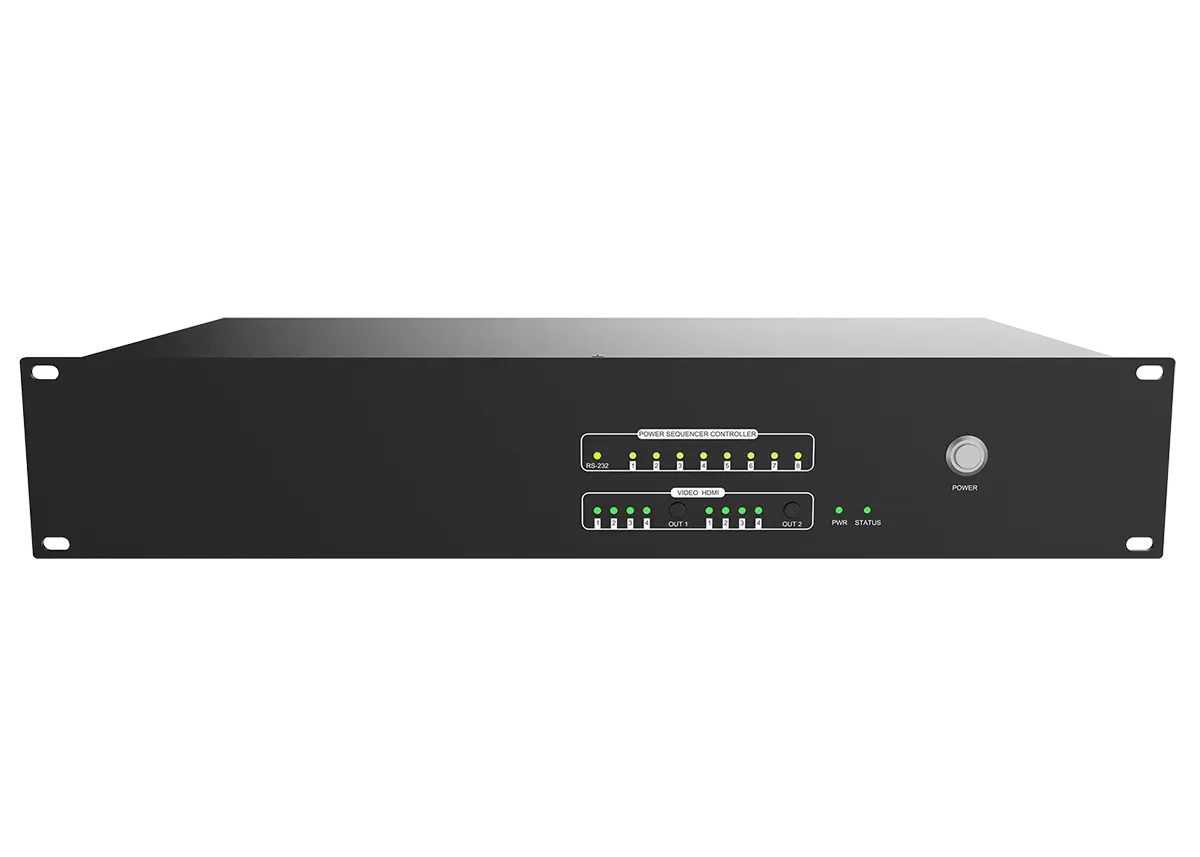

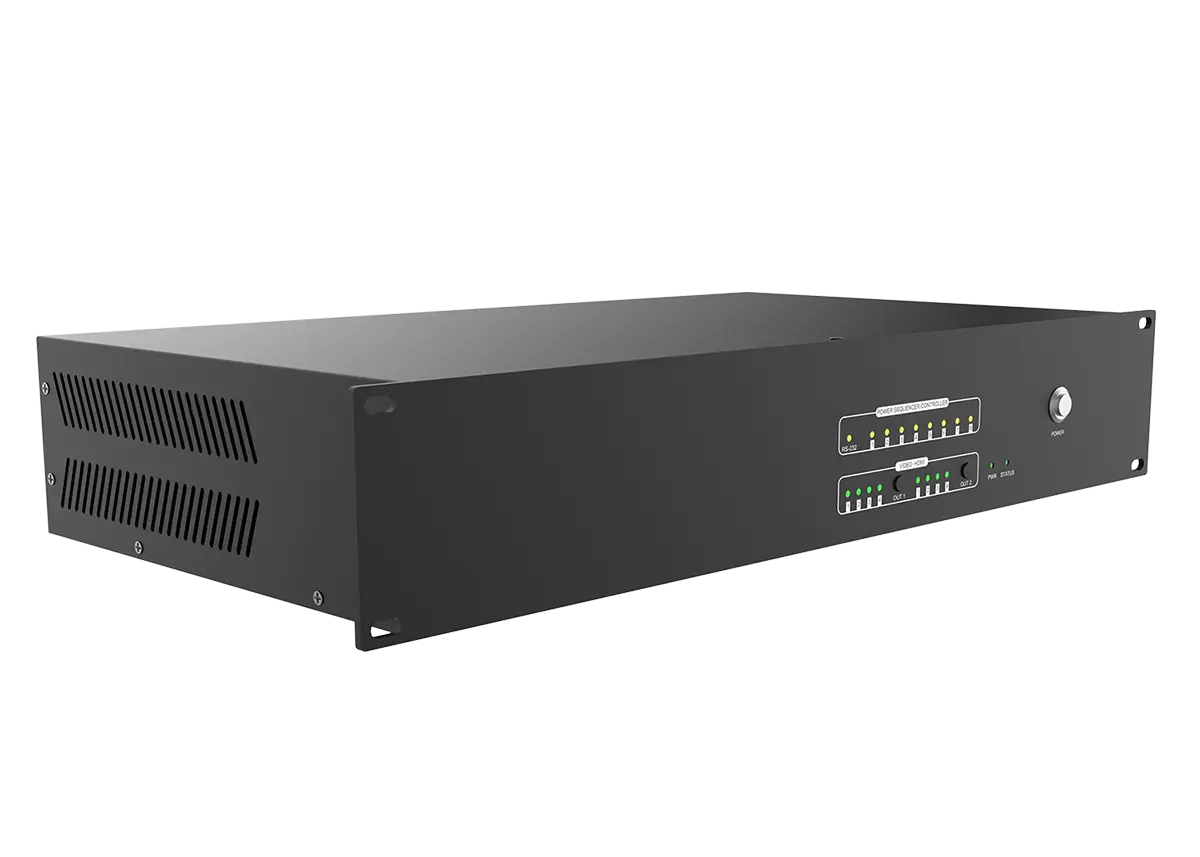

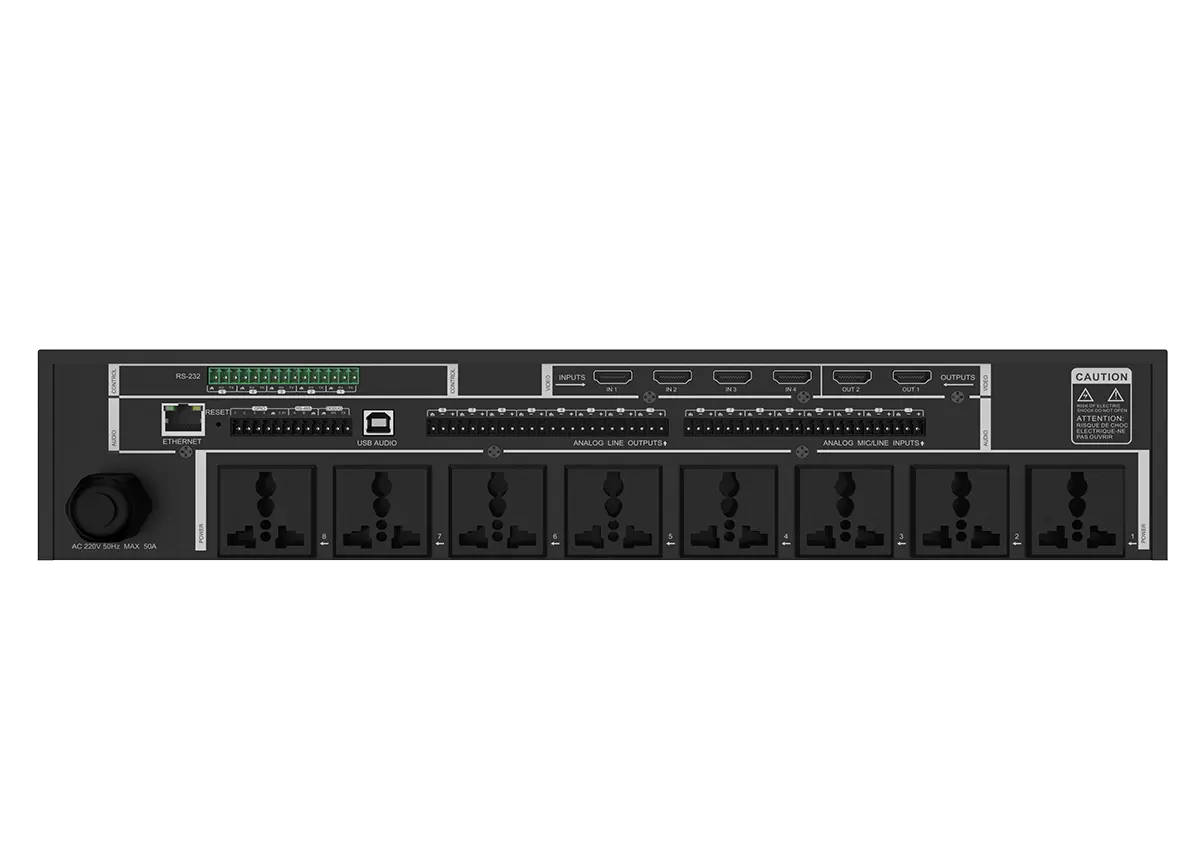

The all-in-one AV processor is a 4x2 matrix switcher with HDMI input and output, 4K resolution conversion, audio DSP with AEC, expandable power amplifiers, and an integrated central control processor with sequenced power. It provides a complete solution for small to medium AV system integration, supporting multiple displays, sound amplification, and system control, with real-time signal monitoring via a PAD interface.
8
8
ADI SHARC 21489 @ 450 MHz SIMD
400 MIPS, 1.6 GFLOPS
48 kHz, ± 100 ppm
< -100 dB @ 4 dBu
110 dB
112 dB
4 GPIO
1 RS232
1 RS485
Built-in USB sound card, supports music playback, recording, and soft video conferencing (e.g., Zoom, Tencent Meeting, DingTalk)
Bus-style AEC, tail time: 512 ms, convergence rate: 60 dB/S, echo cancellation range: 60 dB
Independent channel AFC (feedback suppression), notch filter algorithm, voice gain improvement: 10 dB
Noise suppression (ANS), SNR improvement: 18 dB
8-band English parametric equalizer, with 5 filter options: Parametric, Lowshelf, Highshelf, Lowpass, Highpass
4 extended RS232
8 power sequencers

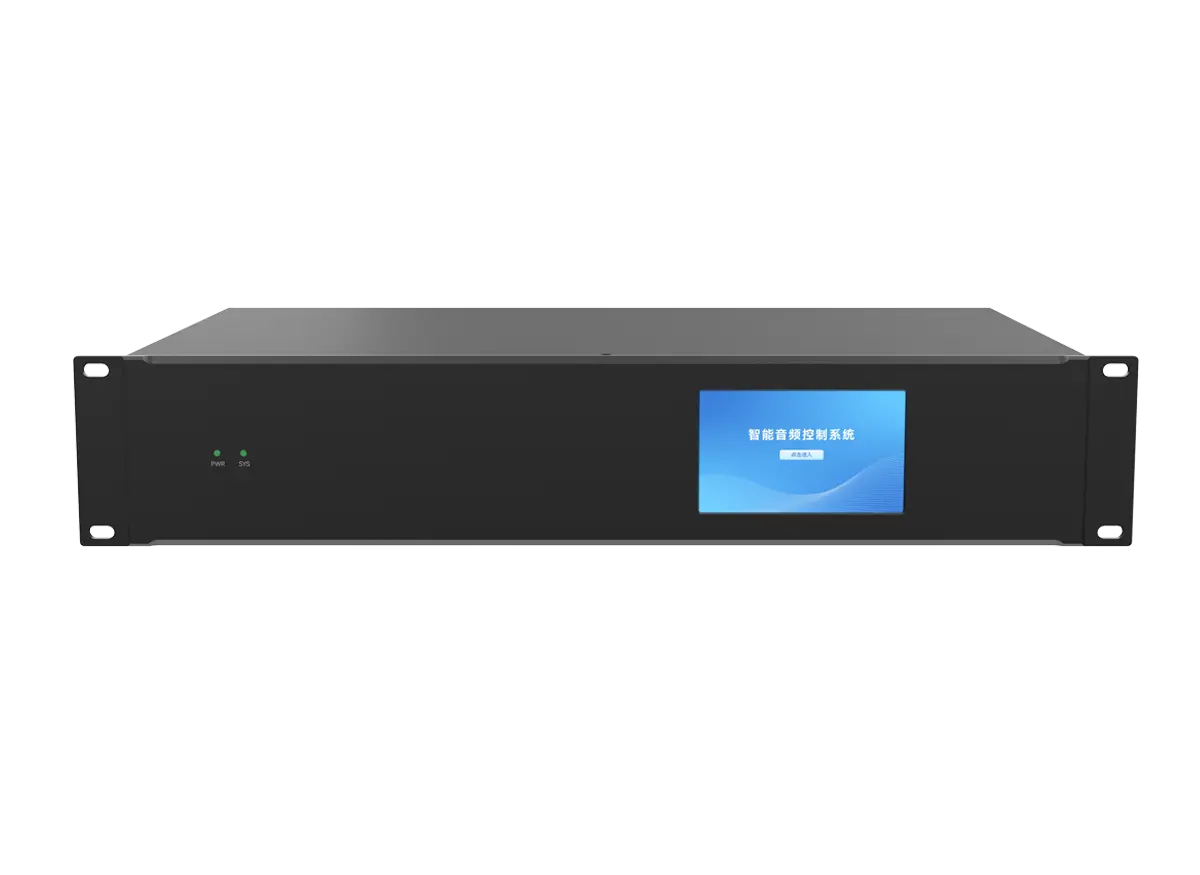

The multimedia management host is an all-in-one solution that integrates audio, video, and control, replacing the need for multiple single-function devices. It eliminates the complexities of integration and enhances system reliability. This compact 2U unit offers robust audio processing, excellent 4K video quality, seamless switching, HDMI 2.0, HDR, and simplifies installation and maintenance for small to medium-sized conference rooms, training rooms, and multimedia classrooms.
8x8
4x4
6 adjustable RS232/RS485
ADI SHARC 21489
48K/24bit
40bit DSP floating-point
0/6/12/18/24/30/36/42/48dB
+48V/10mA max
±0.5dB (20~20kHz)
+18dBu
< -92dB @17dBu
110dB
110dB
108dB
5.4kΩ
600Ω
< 3ms
4K2K@60Hz YCbCr 4:4:4
18Gbps
Dolby Vision, HDR 10+, HLG
AC220V/50Hz
4.3" TFT, 480x800 resolution
HDMI 2.0, HDCP 2.2, HDCP 1.4, DVI 1.0
Smart EDID, including AUTO, COPY, and STD
AVONE 0402
Compatible with HDMI 2.0, HDCP 2.2, HDCP 1.4, and DVI 1.0;
Supports 4 HDMI inputs and 2 HDMI outputs;
Supports video resolution up to 4K2K@60Hz YCbCr 4:4:4;
Supports 18 Gbps uncompressed video bandwidth;
Supports Dolby Vision, HDR 10+, and HLG;
Supports extracting audio from OUT A or OUT B source devices to output to a digital audio processor;
Supports 4K→1080P resolution downscaling for OUT A and OUT B;
Supports ARC functionality;
Supports intelligent EDID management, including AUTO, COPY, and STD.

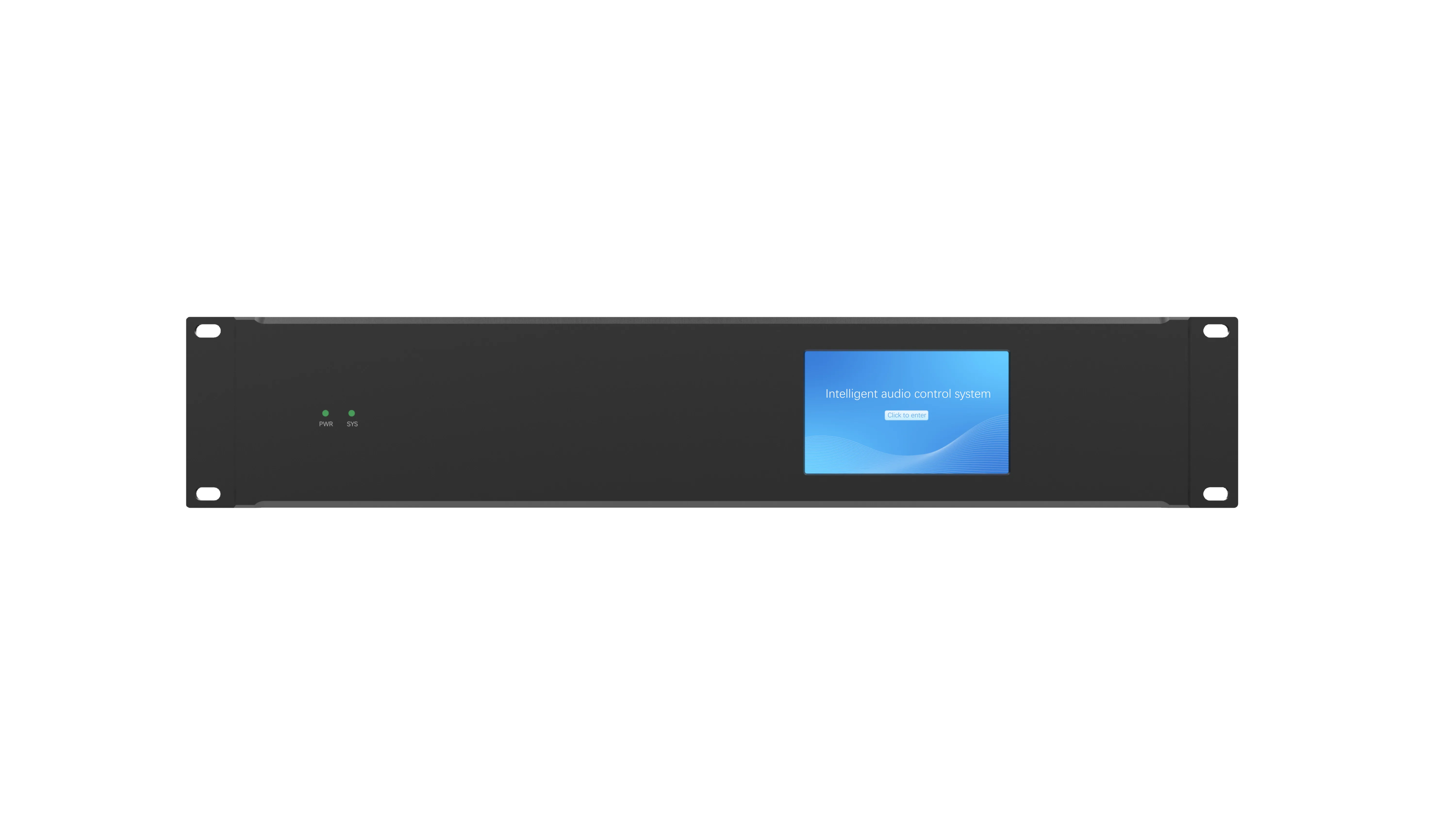

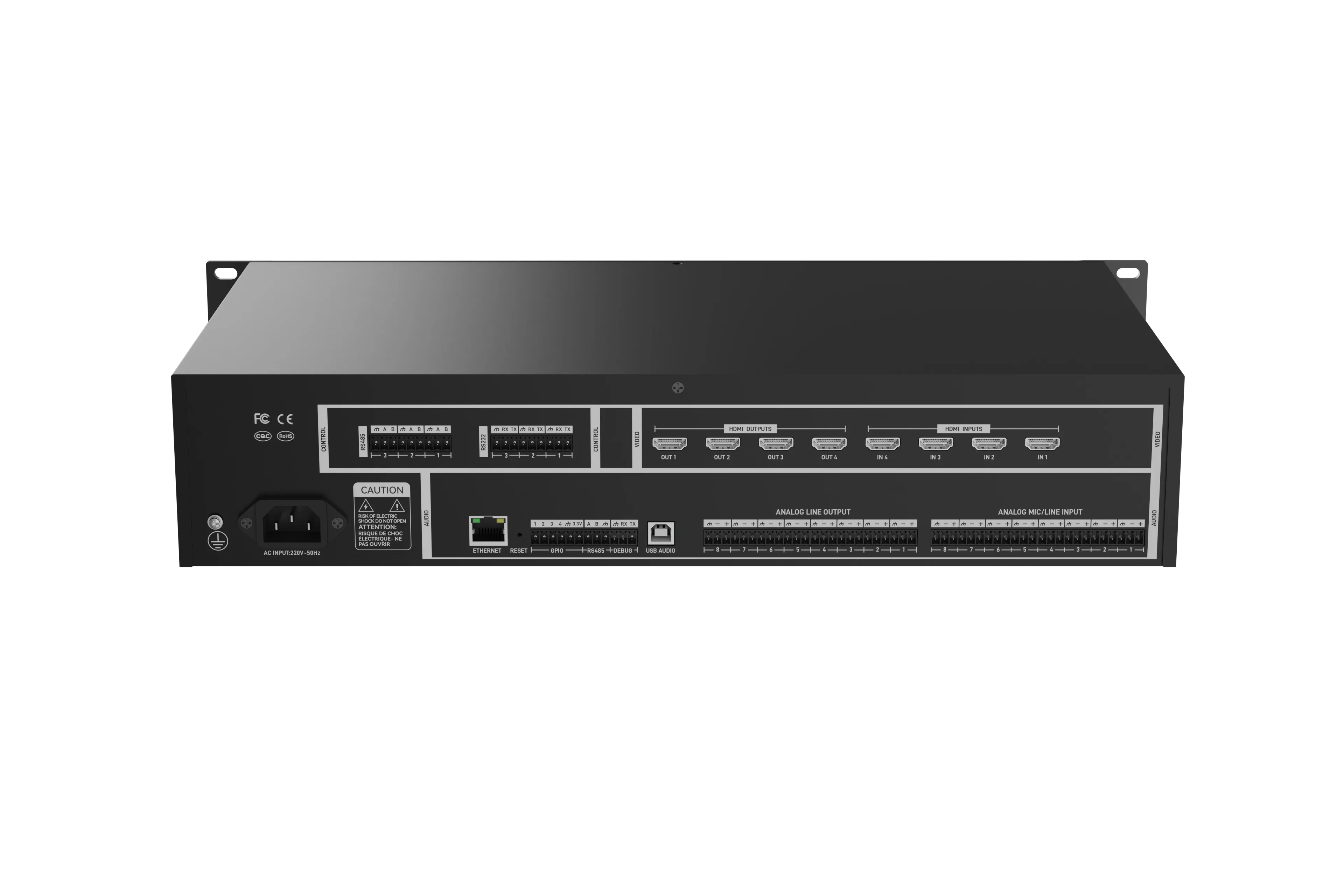

AVONE-1000
Utilizes 5A algorithm technology, offering powerful audio processing capabilities.
Supports seamless 1Gb video matrix, 4K30 4:4:4 resolution.
Compatible with High Dynamic Range (HDR), HDR10, and 36-bit deep color.
Simplified central control programming with drag-and-drop user interface and graphical operation mode.
All-in-one design integrating audio processor, video matrix, and central control.
8x8 audio matrix.
Independent AFC (feedback suppression) using notch filter algorithm, improving speech gain by 10dB, and noise suppression (ANS) enhancing SNR by 18dB.
8-band English parametric equalizer with 5 filter options: Parametric, Lowshelf, Highshelf, Lowpass, Highpass.
Built-in USB sound card for music playback, recording, and soft video conferencing (e.g., Zoom, Tencent Meeting, DingTalk).
Compatible with HDMI 2.0, HDCP 2.2, HDCP 1.4, and DVI 1.0.
4 HDMI inputs and 4 HDMI outputs.
Independent audio separation for digital audio processor output.
Smart EDID management, including AUTO, COPY, and STD modes.
6 adjustable RS-232/RS-485 control ports.
